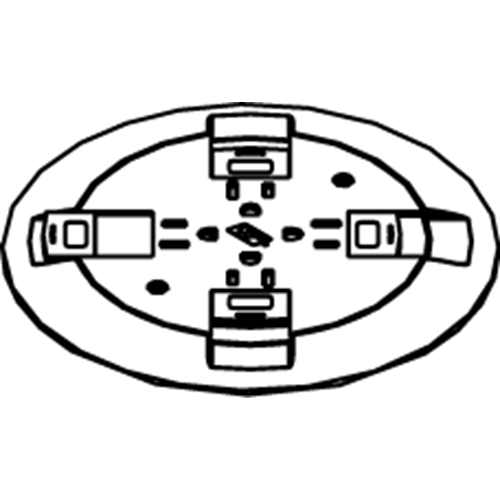

WLK RC9CTCAB RC9 15A CVR BS FLANGE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$225.60/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # RC9CTCAB
North Coast Part # 1685857

Specifications

  • Country Of Origin: MX
  • Standard: cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT. cULus Listed Nonmetallic Outlet Boxes & Fittings Classified for Fire Resistance: File R8209 Guide CEYY. Meets Article 300.21, 300.22[C] &314 of NEC.
  • Type: Poke-Thru
  • Certifications: NAFTA,CULUS,ROHS
  • Construction: Assembled
  • Product Line: Wiremold
  • Application Sector: Commercial
  • Special Features: Slide doors, low profile cover

Certifications

  • cULus Listed: E2961
  • NAFTA Compliant
  • RoHS Compliant

Overview

UPC 78656400568
Item Long Description Flange available painted in gray (GY), black (BK), ivory (VY), and brushed metal finishes in aluminum (AL) and brass (BS). Aluminum and brass flanges shipped with black cover. Brass flange also available with brass colored cover assembly (AB). Aluminum flange also available with aluminum colored cover assembly (AA). Cover assembly also includes two openings for pass-through capability for one 4-pair Category 5e or Category 6 cable per opening. NOTE: Assembled with scrub water gasket. For use on tile or carpet floors. RC9 Series Poke-Thru Devices require a 3 1/16'' (78mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8'' minimum.
GTiN 00786564005681
Color Brass
Type Poke-Thru
Hole Size 3 in
Material Aluminum
Product Series RC9
Applications Open Space Concrete Floors
Component Type Cover Assemblies
Country of Origin Mexico
Family Brand Name Wiremold
Construction Assembled
Certifications CULUS,NAFTA,ROHS
Sub Brand Wiremold
