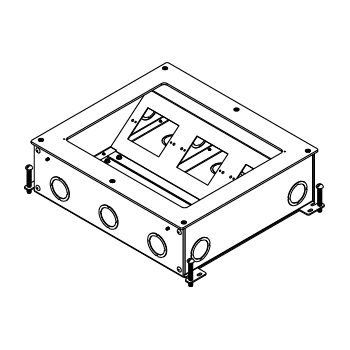

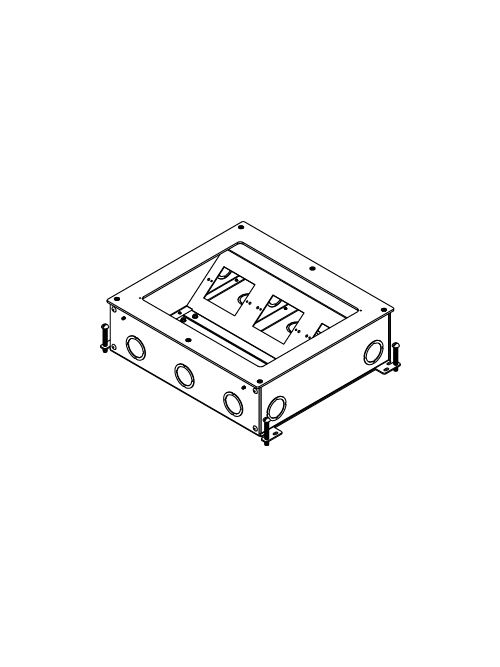

WM RFB9-OG LRG CAPACITY ONGRADE FLO
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$334.41/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # RFB9-OG
North Coast Part # 1009122

Features

  • TopGuard Protection. Integral design component that prevents water, dirt, and debris from entering power and communication compartments. Whenever you see the TopGuard protection icon on any Wiremold product, you’ll know it meets and exceeds UL scrub water exclusion requirements for tile and carpet floors.
  • UL Listed to U.S. and Canadian safety standards for tile, terrazzo, carpet, and wood covered concrete floors. RFB9 cover assemblies meet UL requirements under UL514A for scrub water exclusion.
  • Heavy Duty Cover Assembly will accept loads up to 3,000 lbs. Provides added protection for most applications.
  • RFB9 has 9 gangs to accept both power, communication and audio/video devices. Reduces installation cost by eliminating the need for multiple floor boxes to provide the necessary services to one location.
  • Lightweight slab on-grade version. Special fusion bonded epoxy corrosion resistant coating allows the box to be installed on-grade without the weight of cast iron.
  • Accepts standard industry sized device plates and industry standard sectional device plates. Allows for quick and flexible installation of both power and communication devices.
  • Multiple trade size knockouts from 3/4'' to 1 1/4''. Allows for most conduit schemes which saves time and money during installation.
  • Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point-of-use.
  • Accepts a wide variety of Extron Architectural Series video and audio products including computer video interfaces, twisted pair transceivers, and modular A/V connector plates. Extron Electronics is a leading manufacturer of audio visual system integration products. For additional information on Extron products, please contact your local Extron Dealer.
  • This product meets the material restrictions of RoHS.

Specifications

  • Special Features: 9-gang floor box, epoxy coated allows box to be placed in contact with the Earth and no vapor barrier required. ,4" deep concrete pour,
  • Country Of Origin: MX
  • Type: Floor Box
  • Certifications: CULUS,ROHS
  • Construction: Assembled
  • Number of Knockouts: 32
  • Product Line: Wiremold
  • Cable Entry: knockouts in
  • Cubic Capacity: 261.0 cu in
  • Application Sector: Commercial
  • Standard: cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT, Meets Article 314.27(C) of NEC.

Certifications

  • cULus Listed: E2961
  • RoHS Compliant

Overview

UPC 78677609575
GTiN 00786776095753
Type Floor Box
Material Steel
Product Series RFB
Applications Open Space Concrete
Country of Origin Mexico
Family Brand Name Wiremold
Construction Assembled
Certifications CULUS,ROHS
Cable Entry knockouts
Sub Brand Wiremold
