Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # WMFB1SRN
North Coast Part # 1166920


  • Special Features: Single- and dual-gang boxes. Provides a wide variety of either single- or dual-service capabilities to deliver power and communication services to the point-of use.
  • Country Of Origin: CN
  • Certifications: ROHS,CULUS
  • Type: Floor Box
  • Number of Outlets: 1.0
  • Product Line: Wiremold
  • Construction: Not Assembled
  • Cable Entry: Through Floor in
  • Application Sector: Residential/Commercial
  • Standard: cULus Listed Nonmetallic Outlet Boxes: File E143222 Guide QCMZ. Meets Article 314.27(C) of NEC.


  • RoHS Compliant
  • cULus Listed: E143222


UPC 78656405393

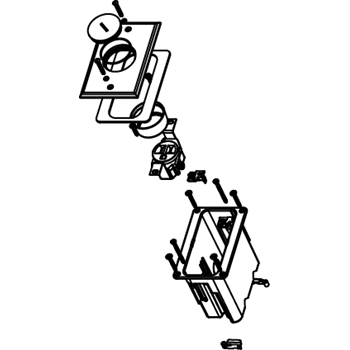

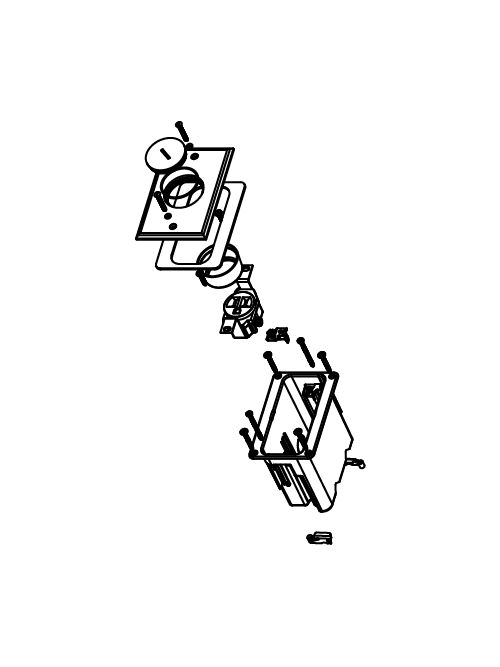

Item Long Description Includes single-gang box, one 15A tamper-resistant receptacle, and nickel cover with one screw plug. For hole cut dimensions, see installation instructions sheet. Box Dimensions: 2 1/8'' W x 3 3/4'' L x 3 7/8'' D (54mm W x 95mm L x 98mm D) Device Plate: 3 1/8'' W x 4 15/16'' L(79mm W x 125mm L).
GTiN 00786564053934
Length 3-3/4 in
Finish Brushed Nickel
Width 2-1/8 in
Size Box- 2 1/8"W x 3 3/4"L x 3 7/8"D Cover-3 1/8"W x 4 15/16"L
Color Brass
Type 1-Outlet
Material Brass Cover
Applications Commercial, Office, Residential
Mounting Type Screw-On
Depth 3-7/8 in
Country of Origin China
Family Brand Name Wiremold
Construction Not Assembled
Buy American Compliant No
Number of Gangs 1 Gang
Cable Entry Through Floor
Sub Brand Wiremold
Certifications CULUS,ROHS
Number of Outlets 1.0
